In this assignment we will study how we can use power bonds to connect submodel into a system model.

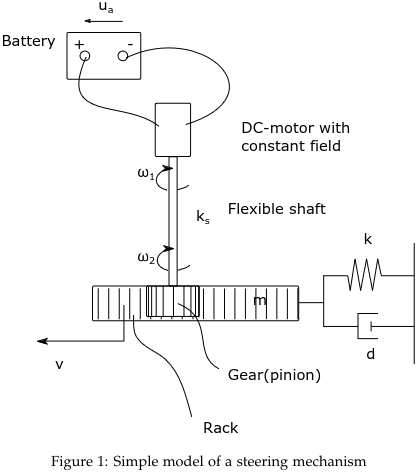

Problem 1 (Steering Mechanism)

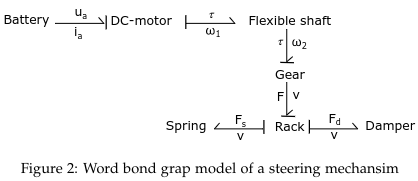

a)

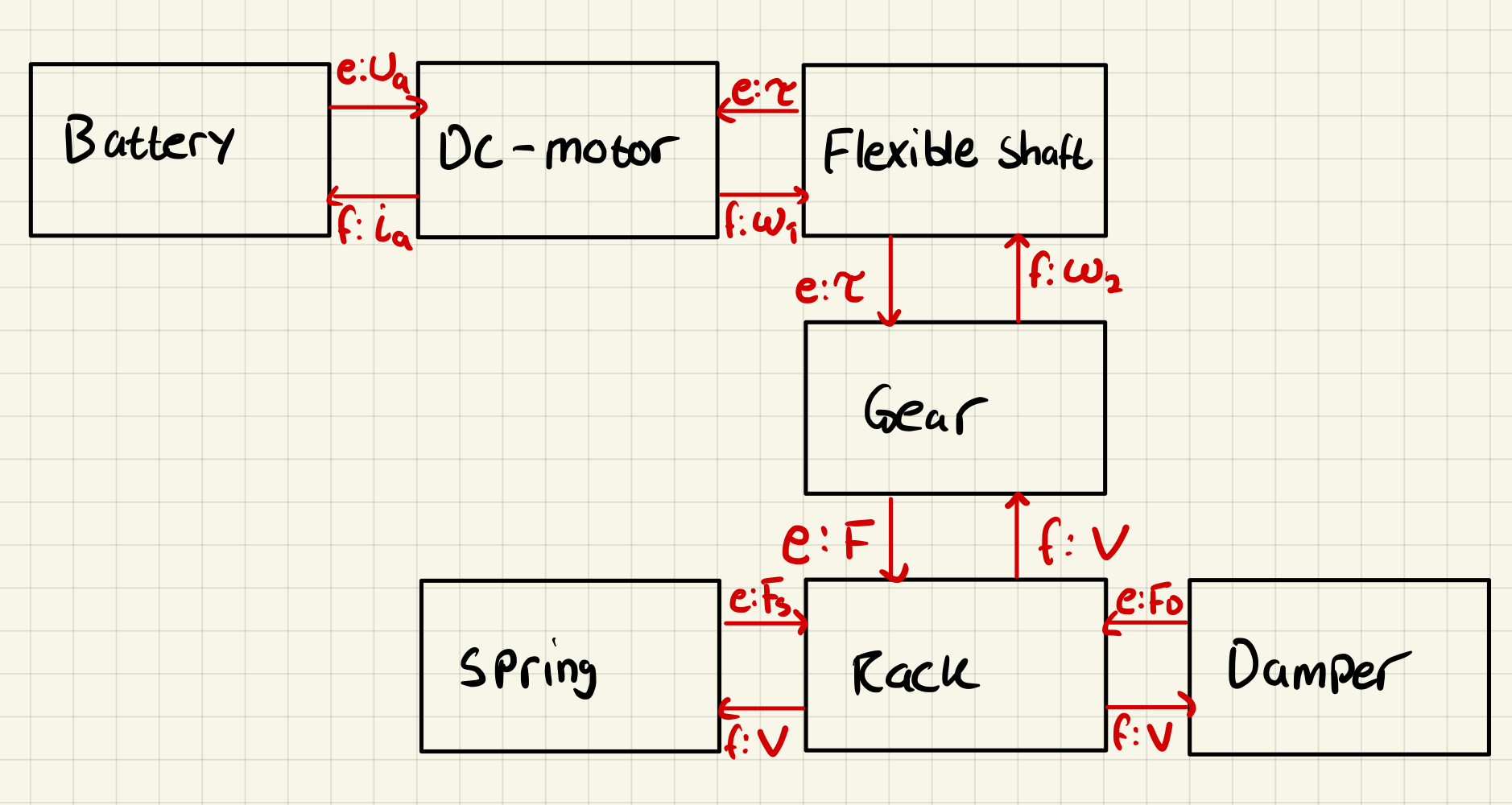

Based on the Causal Stroke, we can determine the direction of the Flow and Effort when creating a block diagram
b)

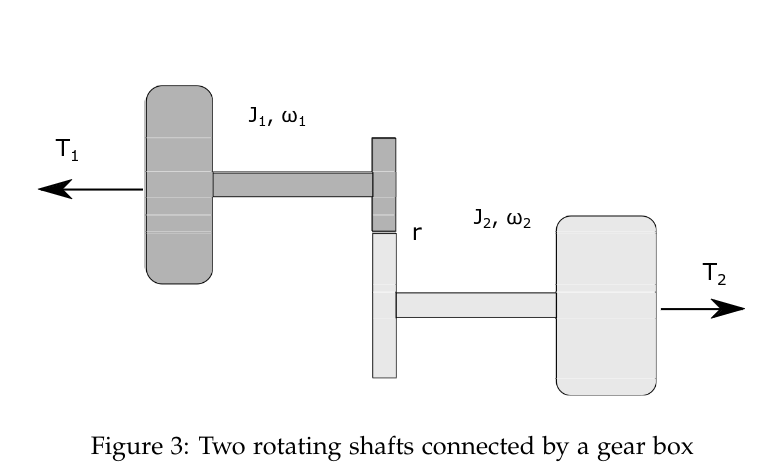

Problem 2 (Two Rotating Shafts)

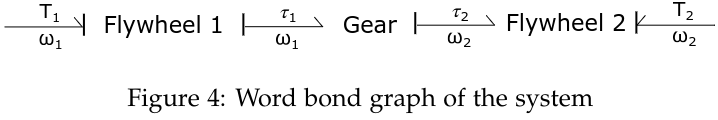

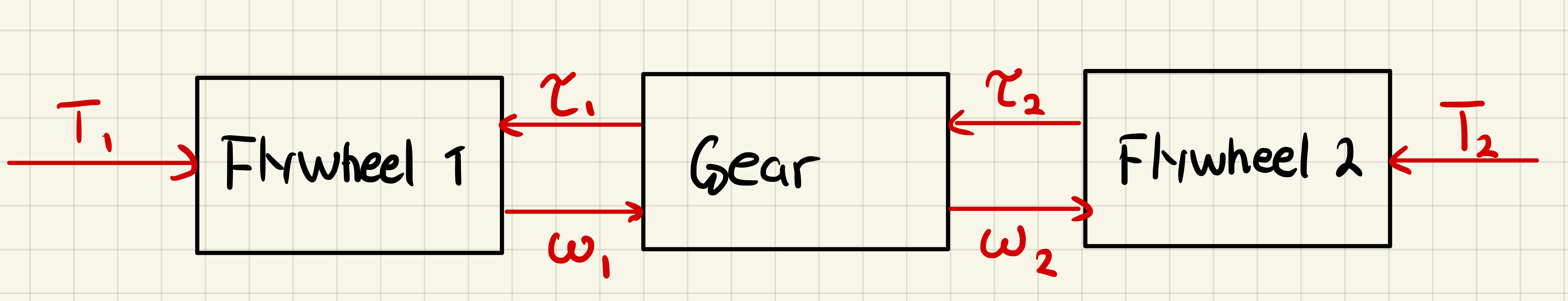

a)
b)
c)
