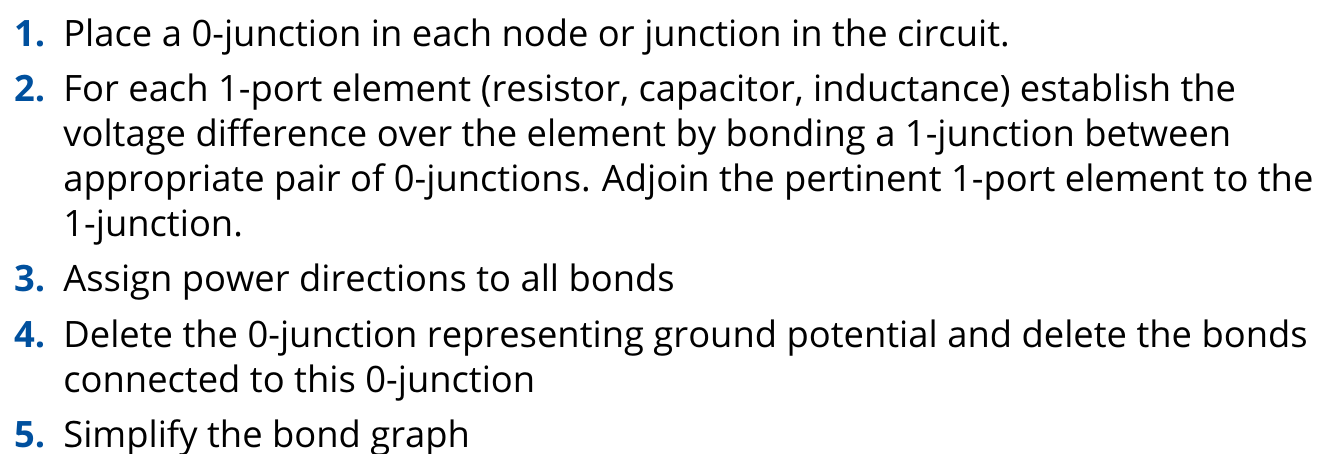

Procedure for Modelling Electrical Systems

Resources: page=75

---

---

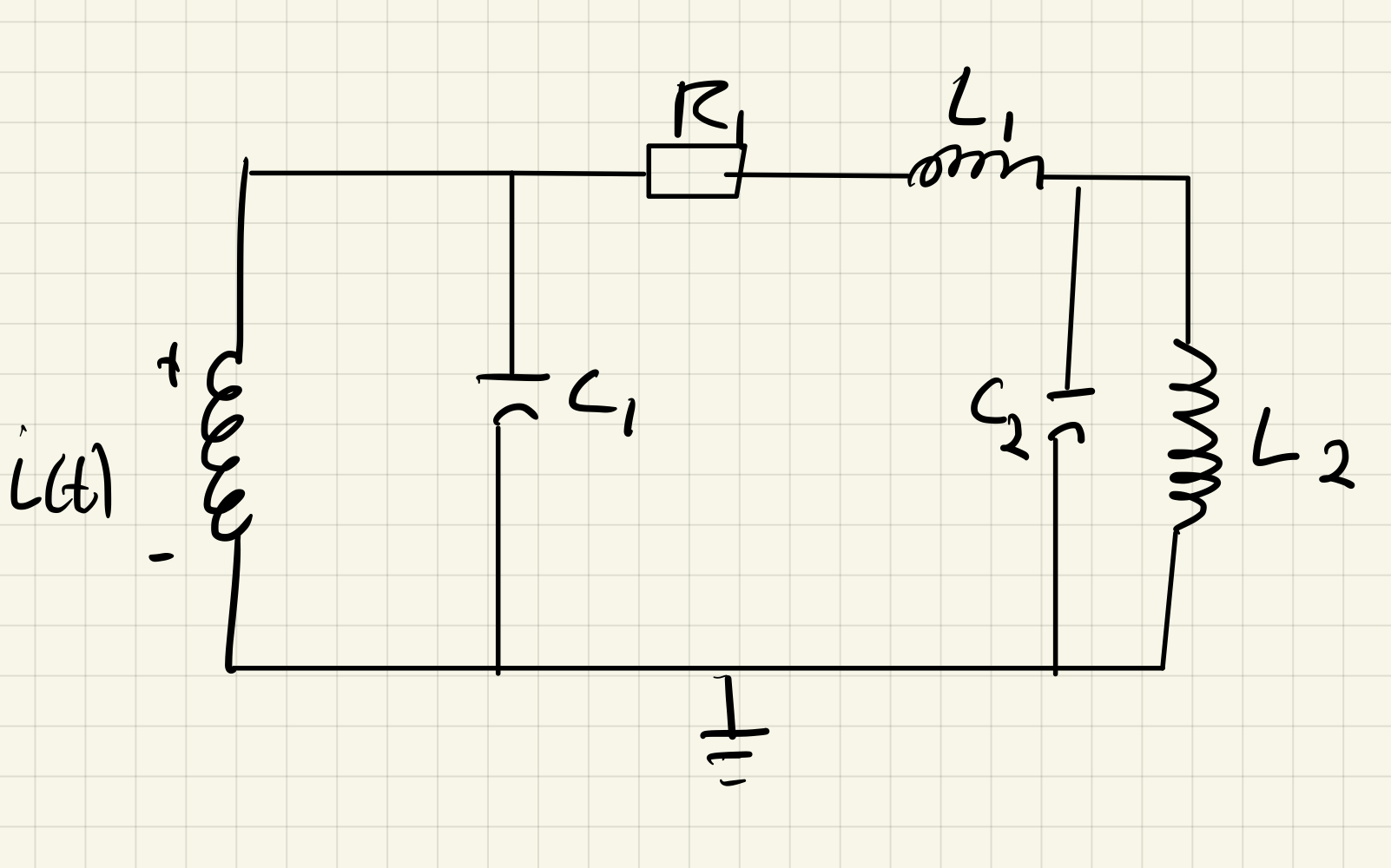

Example

• Components in parallel have the same voltage → Share 0-junction
• Components in series share current → Share a 1-junction

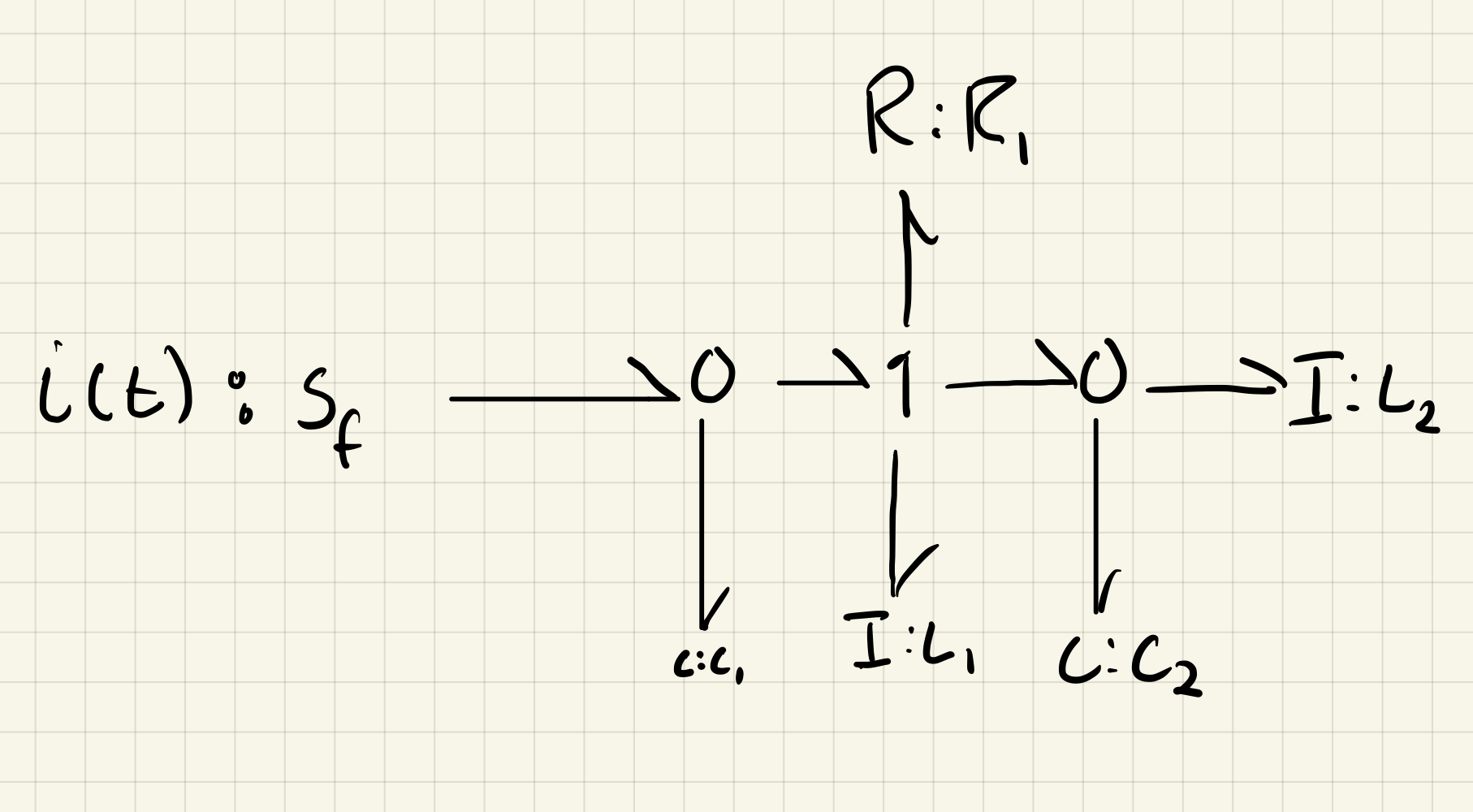

Direct Approach

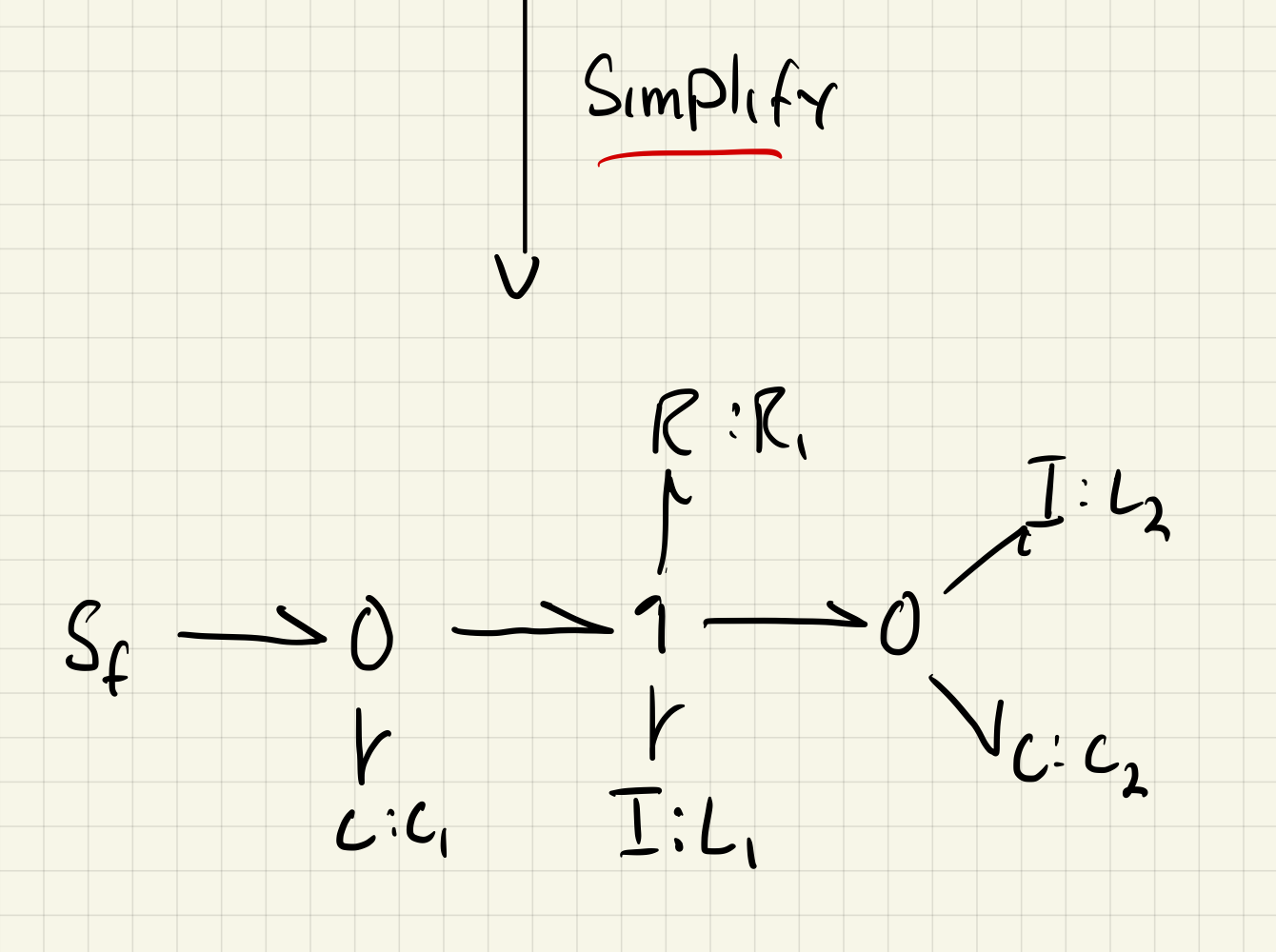

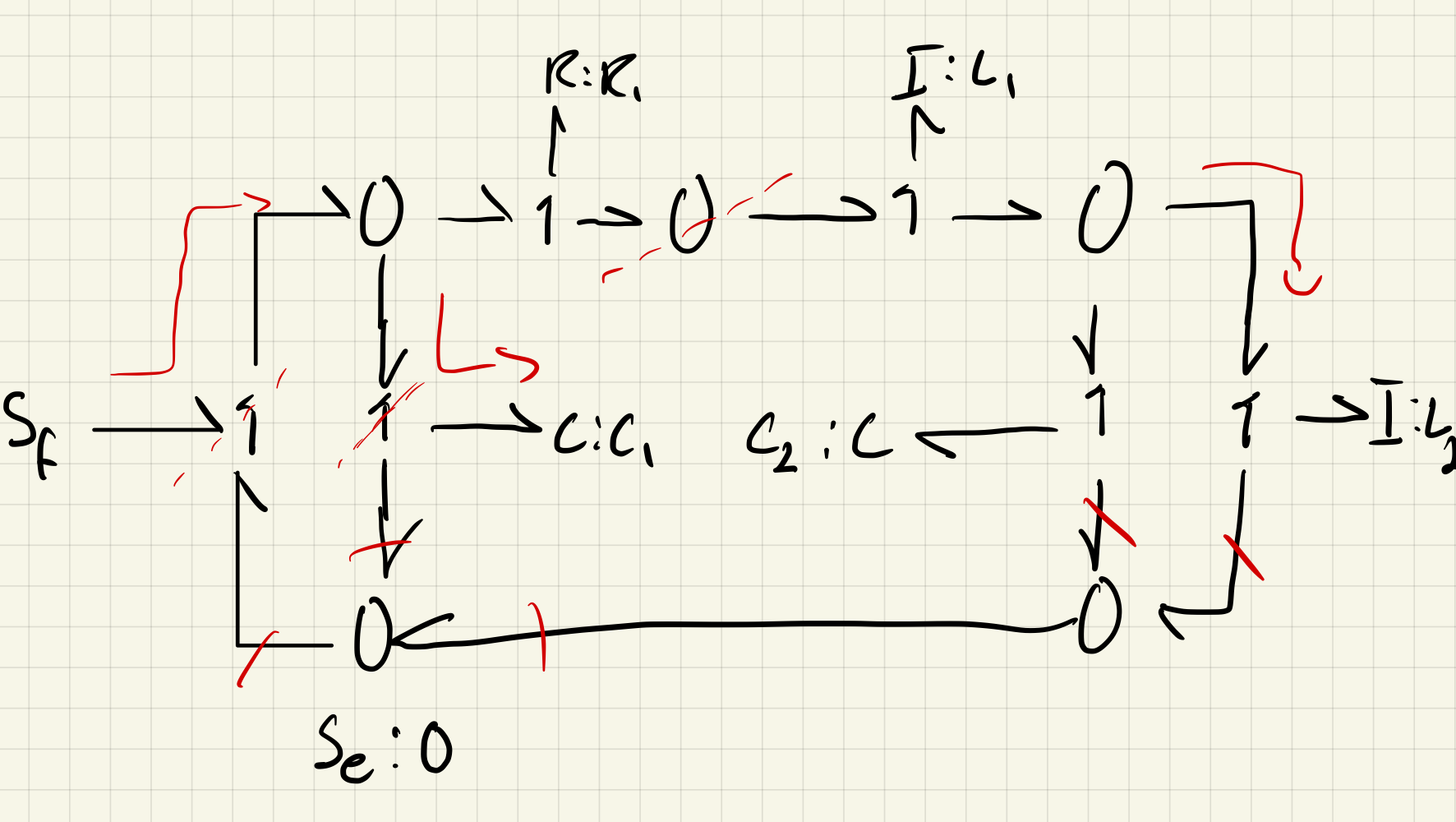

Using the Procedure

Power directions are decided by the direction of the current
